Sistema completo de la cámara del endoscopio de HD

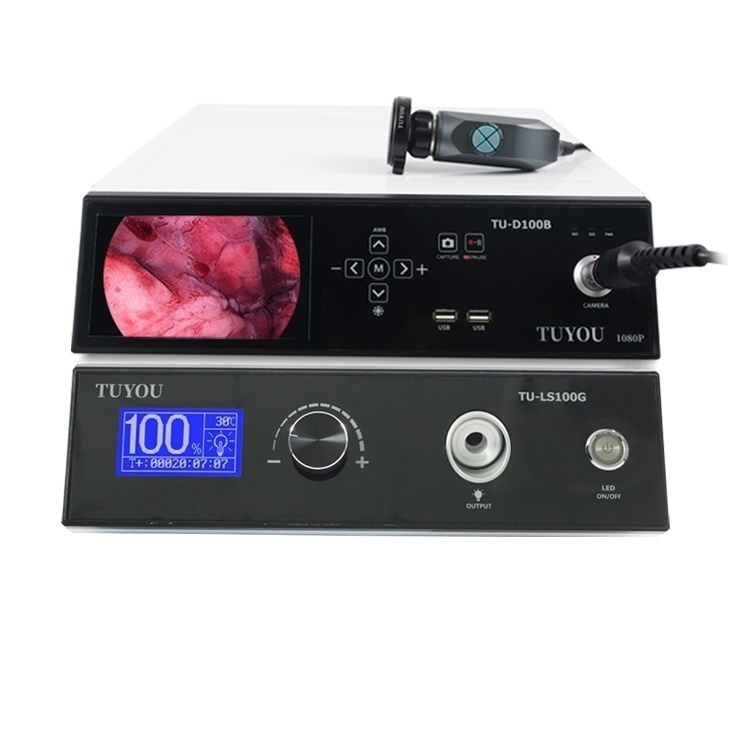

TUYOU TV-D101B 1080P Endoscopic Camera with 6-inch Display Built-in Video Recording and SONY CMOS Sensor for Medical Procedures

TUYOU TV-D101B 1080P Endoscopic Camera with 6-inch Display Built-in Video Recording and SONY CMOS Sensor for Medical Procedures

Nombre De La Marca:	TUYOU
Número De Modelo:	Se trata de un sistema de control de las emisiones de gases de escape.
Cuota De Producción:	1 set
Tiempo De Entrega:	días 3-15work
Condiciones De Pago:	T/t, unión occidental

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

PORCELANA

Certificación:

CE FDA ISO13485

Tipo:

Endoscopio

Clasificación de instrumentos:

Clase I

Nombre de la marca:

TUYOU

Número de modelo:

Se trata de un sistema de control de las emisiones de gases de escape.

Propiedades:

Sistema de imágenes para médicos

Nombre del producto:

Cámara médica endoscopio

Sensor de imágenes:

1/2.8 "Sony CMOS

Palabras clave:

Equipo médico

Resolución:

1080P(1920*1080P)

Detalles de empaquetado:

Tamaño de la caja: 48.5*48*26 "Peso: 11 kg una PCS

Capacidad de la fuente:

2000 al mes

Resaltar:

6-inch Display Endoscopic Camera

Built-in Video Recording Endoscope Camera System

SONY CMOS Sensor Medical Endoscope Camera

Descripción de producto

TUYOU TV-D101B 1080P Endoscopic Camera with 6 inch Display and Recorder for Laparoscopy

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

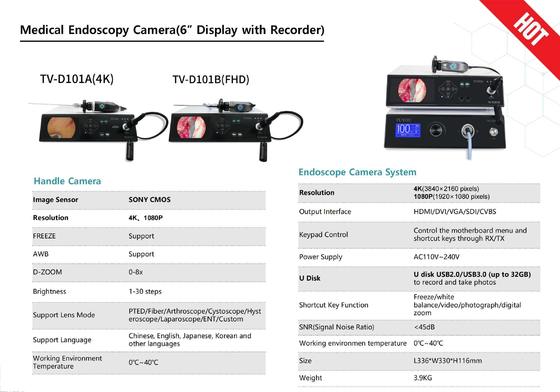

Product Specifications

System Parameters
Item Number	TV-D101B(1080P TV)
Input Interface	1080P

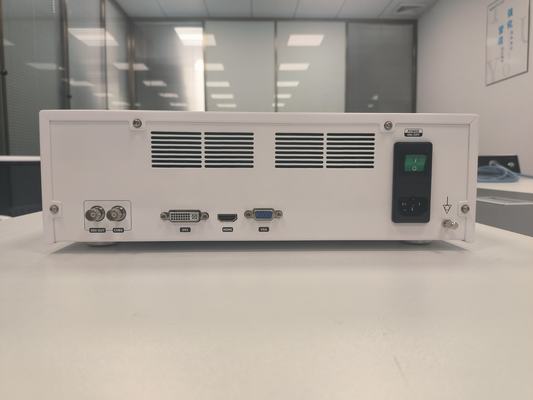

Output Interface	HDMI/SDI/CVBS/DVI/VGA
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
USB Port	USB2.0/USB3.0 (max 32GB support) for recording/photos
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

1080P Integrated ENT/Laparoscopic Medical Endoscope Camera for Doctors and Veterinarians

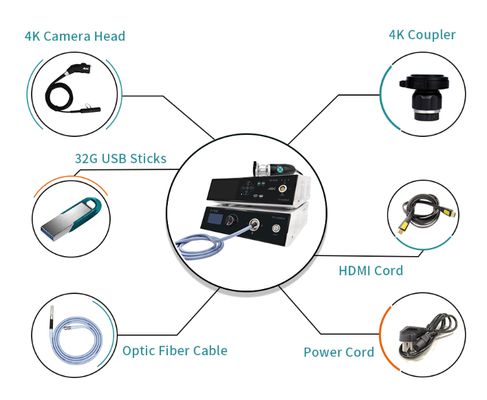

Product Components

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
6-inch display for real-time viewing
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery

推荐产品

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 0

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 1

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 2

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 3

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 4

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 5

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a Chinese medical imaging equipment manufacturer. All products are produced by our workers, with 4 production lines and a dedicated R&D team.

Q: Where are you located?

A: Our address is Building 3, Nantaiyang Yunchuang Valley, Fenghuang District, Shenzhen, Guangdong, China. You're welcome to visit our factory.

Q: Do you accept OEM?

A: Yes, we provide "TUYOU" brand products. We also offer OEM services if required.

Q: What is your delivery time?

A: 7 working days after payment; samples are ready.

Q: What is the warranty?

A: 2 years free warranty. During this period, we will repair and replace faulty components free of charge.

Q: What are your payment terms?

A: We accept T/T bank transfer, Alibaba Trade Assurance, Western Union, MoneyGram, PayPal, L/C, cash, etc.
